bearings in the 718 and 719 series are typically used. Bearings in these two series contain the largest number of balls, relative to the selected bore size, and can also accommodate the largest shaft diameter, relative to their outside diameter.

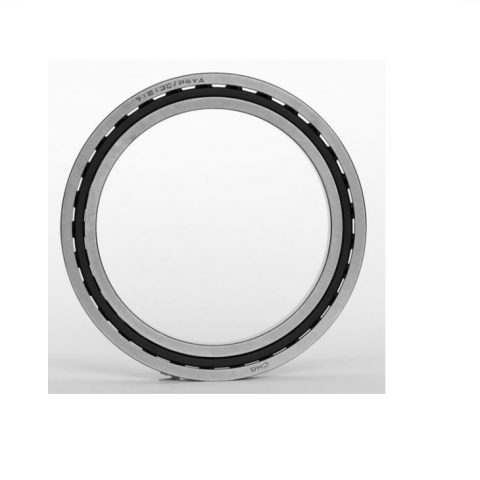

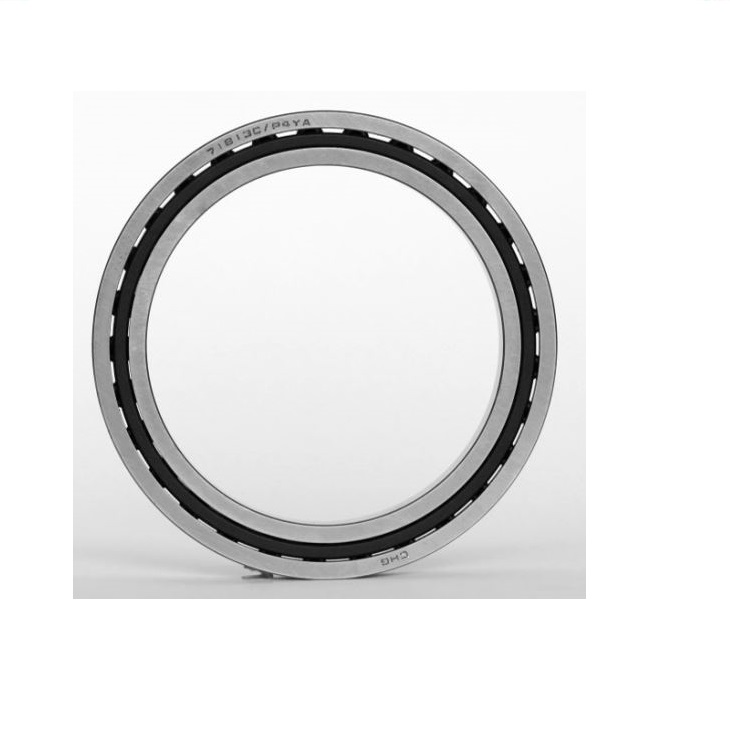

super-precision angular contact ball bearings 718 and 719 series
If a high degree of stiffness is required, bearings in the 718 and 719 series are typically used. Bearings in these two series contain the largest number of balls, relative to the selected bore size, and can also accommodate the largest shaft diameter, relative to their outside diameter. Both characteristics are particularly important for system rigidity, as the rigidity of a spindle increases with its shaft diameter, and the rigidity of a bearing arrangement increases with the number of balls.
| Item | Size (mm) | C | AC | ||||
| d | D | B | Basic load | Limted speed | Basic load | Limted speed | |
| Cr Cor | Grease Oil | Cr Cor | Grease Oil | ||||
| 71800C | 10 | 19 | 5 | 1.8 1.1 | 74000 119000 | 1.7 1.1 | 69000 109000 |
| 71801C | 12 | 21 | 5 | 2.0 1.4 | 69000 109000 | 1.9 1.3 | 62000 94000 |
| 71802C | 15 | 24 | 5 | 2.2 1.8 | 59000 89000 | 2.1 1.7 | 53000 79000 |
| 71803C | 17 | 26 | 5 | 2.3 1.9 | 52000 79000 | 2.1 1.8 | 49000 74000 |
| 71804C | 20 | 32 | 7 | 3.9 3.4 | 44000 66000 | 3.7 3.2 | 39000 59000 |
| 71805C | 25 | 37 | 7 | 4.2 4.1 | 37000 55000 | 3.9 3.9 | 33000 49000 |
| 71806C | 30 | 42 | 7 | 4.4 4.8 | 31000 47000 | 4.1 4.5 | 27000 42000 |
| 71807C | 35 | 47 | 7 | 4.6 5.5 | 25000 39000 | 4.3 5.2 | 23000 37000 |
| 71808C | 40 | 52 | 7 | 4.8 6.2 | 23000 37000 | 4.5 5.8 | 19000 33000 |
| m | Size (mm) | C | AC | ||||
| d | D | B | Basic load | Limted speed | Basic load | Limted speed | |
| Cr Cor | Grease Oil | Cr Cor | Grease Oil | ||||
| 71901C/AC | 12 | 24 | 6 | 3.2 2.2 | 62000 94000 | 3.1 2.1 | 55000 84000 |
| 71902C/AC | 15 | 28 | 7 | 4.8 3.4 | 52000 79000 | 4.6 3.2 | 49000 74000 |
| 71903C/AC | 17 | 30 | 7 | 5.1 3.8 | 49000 74000 | 4.8 3.6 | 44000 66000 |
| 71904C/AC | 20 | 37 | 9 | 7.4 5.8 | 39000 59000 | 7.0 5.6 | 37000 55000 |
| 71905C/AC | 25 | 42 | 9 | 7.6 6.5 | 33000 49000 | 7.2 6.2 | 29000 44000 |
| 71906C/AC | 30 | 47 | 9 | 8.0 7.6 | 29000 44000 | 7.6 7.2 | 25000 39000 |
| 71907C/AC | 35 | 55 | 10 | 11 10.9 | 25000 39000 | 10.4 10.3 | 19000 33000 |
| 71908C/AC | 40 | 62 | 12 | 14 14.2 | 19000 33000 | 13.3 13.5 | 17000 29000 |
| 71909C/AC | 45 | 68 | 12 | 14.7 16.1 | 17000 29000 | 13.9 15.2 | 16000 27000 |
| 71910C/AC | 50 | 72 | 12 | 19 21.2 | 16000 27000 | 17.9 20.1 | 14000 23000 |
| 71911C/AC | 55 | 80 | 13 | 23.7 27.4 | 14000 23000 | 22.4 26 | 13000 21000 |
| 71912C/AC | 60 | 85 | 13 | 24.8 30.3 | 13000 21000 | 23.3 28.7 | 12000 19000 |
| 71913C/AC | 65 | 90 | 13 | 25.1 31.9 | 12000 19000 | 23.6 30.2 | 11000 18000 |
| 71914C/AC | 70 | 100 | 16 | 34.5 43.3 | 11000 18000 | 32.6 41.2 | 10000 17000 |
| 71915C/AC | 75 | 105 | 16 | 25 45.6 | 10000 17000 | 33 43.2 | 8500 15000 |
| 71916C/AC | 80 | 110 | 16 | 35.5 47.8 | 9000 16000 | 33.5 45.3 | 8000 14000 |
| 71917C/AC | 85 | 120 | 18 | 46.5 61.9 | 8500 15000 | 43.8 58.6 | 7500 13000 |
| 71918C/AC | 90 | 115 | 18 | 47.2 64.8 | 8000 15000 | 44.5 61.4 | 7000 2000 |
| 71919C/AC | 95 | 130 | 18 | 47.9 67.8 | 8000 14000 | 45.2 64.1 | 7000 12000 |
| 71920C/AC | 100 | 140 | 20 | 60.4 84.4 | 7500 13000 | 56.9 79.9 | 7000 12000 |
| 71921C/AC | 105 | 145 | 20 | 61.4 88.2 | 7000 12000 | 57.8 83.5 | 6500 11000 |
Packaging Details:
1.Tube packing.
2.Plastic bag +carton
3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders
