Needle Roller / Thrust Rolling Bearings

BEARING
Needle Roller / Thrust Rolling Bearings

Needle roller / thrust rolling bearings

SKU库存: 9999 分类:

Needle roller / thrust rolling bearings

0c5799ec-cc0d-489f-92e8-8dfbb299cd1b

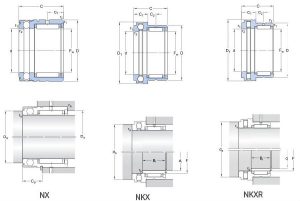

Principal dimensions Basic load ratings Fatigue load limit Speed ratings Designation
(mm) (kN) (kN) (r/min)
Fw D C radial dynamic

C

 radial static

C0

 axial dynamic

C

 axial static

C0

 radial

Pu

 axial

Pu

 Reference speed Limiting speed
7 14 18 2.81 2.75 3.45 5 0.29 0.19 10000 6000 NX 7 ZTN
7 14 18 2.81 2.75 3.45 5 0.29 0.19 10000 11000 NX 7 TN
10 19 23 5.94 8 9.95 15.3 0.9 0.56 9500 13000 NKX 10 TN
10 19 18 4.95 4.55 5.07 8.5 0.53 0.31 8500 9500 NX 10
10 19 18 4.95 4.55 5.07 8.5 0.53 0.31 8500 5600 NX 10 Z
10 19 23 5.94 8 9.95 15.3 0.9 0.56 9500 8000 NKX 10 ZTN
12 21 23 9.13 12 10.4 16.6 1.43 0.62 9000 13000 NKX 12
12 21 18 5.39 5.2 5.27 9.65 0.61 0.36 8000 9000 NX 12
12 21 18 5.39 5.2 5.27 9.65 0.61 0.36 8000 5300 NX 12 Z
12 21 23 9.13 12 10.4 16.6 1.43 0.62 9000 7500 NKX 12 Z
15 24 23 11 14 10.6 18.3 1.66 0.67 8500 7000 NKX 15 Z
15 24 23 11 14 11.2 27 1.66 2.45 4300 8500 NKXR 15
15 24 23 11 14 11.2 27 1.66 2.45 4300 8500 NKXR 15 Z
15 24 28 11 14 6.18 12.2 1.66 0.45 7500 5300 NX 15 Z
15 24 23 11 14 10.6 18.3 1.66 0.67 8500 12000 NKX 15
15 24 28 11 14 6.18 12.2 1.66 0.45 7500 8500 NX 15
17 26 25 12.1 16.6 12.2 31.5 1.96 2.85 4300 8500 NKXR 17
17 26 25 12.1 16.6 10.8 19.6 1.96 0.74 8500 12000 NKX 17
17 26 28 12.1 16.6 6.37 13.4 1.96 0.5 7000 5000 NX 17 Z
17 26 25 12.1 16.6 12.2 31.5 1.96 2.85 4300 8500 NKXR 17 Z
17 26 28 12.1 16.6 6.37 13.4 1.96 0.5 7000 8500 NX 17
17 26 25 12.1 16.6 10.8 19.6 1.96 0.74 8500 7000 NKX 17 Z
20 30 28 13.2 19.3 7.8 17.3 2.28 0.64 6300 7500 NX 20
20 30 28 13.2 19.3 7.8 17.3 2.28 0.64 6300 4500 NX 20 Z
20 30 30 16.5 25.5 14.3 27 3.05 1 7500 6000 NKX 20 Z
20 30 30 16.5 25.5 14.3 27 3.05 1 7500 10000 NKX 20
20 30 30 16.5 25.5 18.6 48 3.05 4.65 3800 7500 NKXR 20 Z
20 30 30 16.5 25.5 18.6 48 3.05 4.65 3800 7500 NKXR 20
25 37 30 15.1 24.5 12.4 28.5 2.9 1.06 5600 3800 NX 25 Z
25 37 30 19 32.5 19.5 40.5 4 1.5 6300 5500 NKX 25 Z
25 37 30 15.1 24.5 12.4 28.5 2.9 1.06 5600 6300 NX 25
25 37 30 19 32.5 19.5 40.5 4 1.5 6300 9000 NKX 25
25 37 30 19 32.5 25 69.5 4 6.8 3200 6300 NKXR 25
25 37 30 19 32.5 25 69.5 4 6.8 3200 6300 NKXR 25 Z
30 42 30 22.9 38 20.3 45.5 4.8 1.7 6000 5000 NKX 30 Z
30 42 30 22.9 38 12.7 32.5 4.8 1.2 5300 6000 NX 30
30 42 30 22.9 38 27 78 4.8 7.65 3000 6000 NKXR 30
30 42 30 22.9 38 27 78 4.8 7.65 3000 6000 NKXR 30 Z
30 42 30 22.9 38 20.3 45.5 4.8 1.7 6000 8500 NKX 30
30 42 30 22.9 38 12.7 32.5 4.8 1.2 5300 3600 NX 30 Z
35 47 30 24.6 45 13.5 38 5.6 1.4 5000 3400 NX 35 Z
35 47 30 24.6 45 13.5 38 5.6 1.4 5000 5600 NX 35
35 47 30 24.6 45 29 93 5.6 9.15 2800 5600 NKXR 35
35 47 30 24.6 45 29 93 5.6 9.15 2800 5600 NKXR 35 Z
35 47 30 24.6 45 21.2 51 5.6 1.9 5600 4500 NKX 35 Z
35 47 30 24.6 45 21.2 51 5.6 1.9 5600 7500 NKX 35
40 52 32 26.4 51 27 68 6.3 2.55 5000 4000 NKX 40 Z
40 52 32 26.4 51 27 68 6.3 2.55 5000 7000 NKX 40
40 52 32 26.4 51 43 137 6.3 13.7 2400 5000 NKXR 40
40 52 32 26.4 51 43 137 6.3 13.7 2400 5000 NKXR 40 Z

Packaging Details:

1.Tube packing.

2.Plastic bag +carton

3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders

initpintu_300IMG_20170414_104928Shipping001
