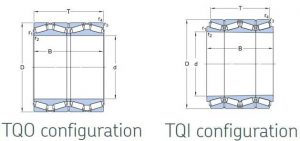

| Principal dimensions | Basic load ratings | Fatique load limit | Designation | ||||
| (mm) | (kN) | (kN) | |||||
| d | D | B | T | dynamic C | static C0 | Pu | |
| 139.7 | 200.05 | 157.162 | 160.34 | 858 | 2080 | 208 | 331138 AG |
| 177.8 | 247.65 | 192.088 | 192.088 | 1020 | 2500 | 232 | BT4-0010 G/HA1C400VA903 |
| 177.8 | 247.65 | 192.088 | 192.088 | 1230 | 3000 | 285 | 331480 G |
| 205 | 320 | 203.5 | 203.5 | 1900 | 3650 | 345 | BT4B 328065/HA1 |
| 206.375 | 282.575 | 190.5 | 190.5 | 1300 | 3350 | 305 | 331486 G |
| 206.375 | 282.575 | 190.5 | 190.5 | 1140 | 2500 | 240 | BT4-0013 G/HA1C400VA903 |
| 206.375 | 282.575 | 190.5 | 190.5 | 1300 | 3350 | 305 | BT4-0021 G/HA1 |
| 216.103 | 330.2 | 263.525 | 269.875 | 2240 | 5100 | 475 | BT4B 328204/HA1 |
| 220.662 | 314.365 | 239.712 | 239.712 | 2200 | 5200 | 465 | 331156 G |
| 240 | 338 | 248 | 248 | 2550 | 5500 | 490 | BT4-0020/HA1 |
| 241.478 | 349.148 | 228.6 | 228.6 | 2160 | 5000 | 455 | 330782 AG |
| 244.475 | 327.025 | 193.675 | 193.675 | 1830 | 4300 | 390 | 330862 B |
| 254 | 358.775 | 269.875 | 269.875 | 2330 | 5400 | 480 | BT4B 329071 G/HA1VA901 |
| 254 | 358.775 | 269.875 | 269.875 | 2860 | 7100 | 620 | 331275 B |
| 260 | 440 | 298.5 | 298.5 | 3910 | 7350 | 670 | BT4B 328551/HA1 |
| 260.35 | 422.275 | 314.325 | 317.5 | 4130 | 8000 | 710 | BT4B 331487 G/HA1 |
| 266.7 | 355.6 | 230.188 | 228.6 | 1870 | 4650 | 415 | BT4-0014 G/HA1C400VA903 |
| 266.7 | 355.6 | 230.188 | 228.6 | 2200 | 5600 | 500 | BT4B 328209 G/HA1C455 |
| 269.875 | 381 | 282.575 | 282.575 | 3080 | 7500 | 655 | BT4B 331168 B |
| 276.225 | 393.7 | 269.875 | 269.875 | 2750 | 5850 | 530 | BT4-0012 G/HA1C500VA901 |
| 279.4 | 393.7 | 269.875 | 269.875 | 2750 | 5850 | 530 | BT4-0011 G/HA1C500VA901 |
| 279.578 | 380.943 | 244.475 | 244.475 | 2290 | 6400 | 540 | 330540 AG |
| 280 | 460 | 324 | 324 | 4680 | 9300 | 815 | BT4B 332441 G/HA1 |
| 285 | 400 | 340 | 340 | 3650 | 7650 | 655 | BT4-8116 E1/C525 |
| 285.75 | 380.898 | 244.475 | 244.475 | 2290 | 6400 | 540 | 330337 AG |
| 285.75 | 380.898 | 244.475 | 244.475 | 2200 | 5500 | 480 | BT4-0015 G/HA1C400VA903 |
| 288.925 | 406.4 | 298.45 | 292.45 | 3580 | 9000 | 765 | BT4B 331452 G/HA1 |
| 292.1 | 422.275 | 269.875 | 269.875 | 3800 | 8000 | 680 | BT4B 331968 BG/HA1 |
| 300 | 440 | 280.988 | 279.4 | 3190 | 7800 | 655 | BT4B 328725 G/HA1 |
| 300 | 440 | 280.99 | 279.4 | 3080 | 6700 | 585 | BT4B 334126 G/HA1VA901 |
| 304.648 | 438.048 | 280.99 | 279.4 | 3080 | 6700 | 585 | BT4B 334008 G/HA1VA901 |
| 304.648 | 438.048 | 280.99 | 279.4 | 3080 | 6950 | 585 | 331492 |
| 304.648 | 438.048 | 280.99 | 279.4 | 3080 | 6950 | 585 | BT4B 328828 G/HA1 |
| 304.8 | 419.1 | 269.875 | 269.875 | 2920 | 6700 | 570 | BT4-8057 G/HA1VA901 |
| 304.8 | 495.3 | 342.9 | 342.9 | 5120 | 9300 | 780 | BT4-8061 G/HA1C400VA901 |
| 304.8 | 501.65 | 336.55 | 336.55 | 4730 | 9300 | 780 | BT4B 328909 G/HA1VA901 |
| 304.902 | 412.648 | 266.7 | 266.7 | 2700 | 6700 | 585 | BT4-0016 G/HA1C200VA901 |
| 304.902 | 412.648 | 266.7 | 266.7 | 2970 | 7500 | 640 | 330758 BG |
| 304.902 | 412.648 | 266.7 | 266.7 | 3190 | 7500 | 640 | BT4-0004 G/HA1 |
| 305 | 438.048 | 280.99 | 279.4 | 3080 | 6700 | 585 | BT4B 334076 G/HA1VA901 |
| 310 | 430 | 350 | 350 | 4750 | 9150 | 765 | BT4-8127 E1/C700 |
| 317.5 | 438.15 | 276.225 | 276.225 | 3520 | 8300 | 695 | BT4B 334020 G/HA4 |
| 317.5 | 422.326 | 269.875 | 269.875 | 2860 | 6550 | 570 | BT4B 334023 E1/C675 |
| 317.5 | 438.15 | 276.225 | 276.225 | 3520 | 8300 | 695 | BT4B 328952 A/HA1 |
| 317.5 | 447.675 | 327.025 | 327.025 | 4730 | 10800 | 880 | BT4B 331161 BG/HA1 |
| 317.5 | 422.326 | 269.875 | 269.875 | 3360 | 8150 | 680 | 330870 BG |
| 317.5 | 447.675 | 327.025 | 327.025 | 4400 | 10800 | 880 | BT4B 331161 AG/HA4 |
| 330.2 | 444.5 | 301.625 | 301.625 | 3690 | 9650 | 800 | BT4B 332647 G/HA1 |
| 330.302 | 438.023 | 247.65 | 254 | 3400 | 6400 | 550 | BT4-8113 E2/C500 |
| 333.375 | 469.9 | 342.9 | 342.9 | 4130 | 10200 | 830 | BT4-8017/HA1C600VA941 |
| 254 | 358.775 | 292.1 | 257.175 | 2860 | 7100 | 620 | BT4B 332610/HA1 |
| 258.762 | 358.775 | 292.1 | 257.175 | 2860 | 7100 | 620 | BT4B 332961/HA1 |
| 279.4 | 407 | 320 | 288 | 3580 | 9000 | 765 | BT4B 328345/HA1 |
| 287.5 | 440 | 330.3 | 284 | 4180 | 8500 | 735 | BT4B 332997/HA1 |
| 287.5 | 440 | 330.3 | 284 | 4180 | 8500 | 735 | BT4B 332997 B/HA1 |
| 320 | 422.275 | 290 | 261.424 | 3080 | 8150 | 680 | BT4B 332716/HA1 |
| 323.452 | 447.675 | 414.338 | 323.85 | 4400 | 10800 | 880 | BT4B 332668/HA1 |
| 347.662 | 469.9 | 280.194 | 246.063 | 3580 | 8500 | 710 | 331807 |
| 352.425 | 488.95 | 384.175 | 342.9 | 3800 | 10200 | 830 | BT4B 332654/HA1 |
| 384.175 | 546.1 | 428.625 | 384.175 | 6440 | 16600 | 1290 | BT4B 331809/HA1 |
| 390.525 | 546.1 | 428.625 | 384.175 | 6440 | 16600 | 1290 | BT4B 332664/HA1 |
| 391.071 | 550 | 428.625 | 384.175 | 6440 | 16600 | 1290 | BT4B 328305/HA1 |
| 400 | 540 | 330 | 295 | 4840 | 12500 | 980 | 332297 |
| 419.1 | 590.64 | 469.9 | 419.1 | 6600 | 15000 | 1160 | BT4B 328564/HA4 |
| 419.1 | 590.55 | 469.9 | 419.1 | 7210 | 19300 | 1460 | BT4B 328203/HA1 |
| 431.8 | 571.5 | 366.713 | 320.675 | 4950 | 14000 | 1060 | 331999 |
| 450 | 595 | 390 | 352 | 5500 | 16300 | 1220 | BT4B 334147/HA1 |
| 453.39 | 635 | 496.888 | 446.088 | 8250 | 22000 | 1600 | BT4B 332822/HA1 |
| 488.95 | 679.45 | 533.4 | 479.425 | 9350 | 25500 | 1830 | BT4B 332760/HA1 |
| 510 | 655 | 405 | 362 | 6270 | 19000 | 1370 | BT4B 328732/HA1 |
| 530.225 | 736.6 | 579.438 | 519.112 | 11200 | 31000 | 2160 | BT4B 332933/HA1 |
| 547.688 | 761.873 | 600.075 | 536.575 | 11700 | 32000 | 2200 | BT4B 332659/HA1 |
| 555.233 | 761.873 | 692.15 | 536.575 | 11700 | 32000 | 2200 | BT4B 334125/HA1 |
| 581.025 | 812.8 | 641.35 | 571.5 | 12100 | 32000 | 2160 | BT4B 332658/HA4 |
| 604.838 | 787.4 | 420.688 | 369.888 | 8420 | 23200 | 1660 | BT4B 328045/HA1 |
| 644.525 | 857.25 | 590.55 | 523.875 | 12100 | 36500 | 2400 | BT4B 332934/HA1 |
| 669.925 | 933.45 | 725.488 | 649.288 | 17200 | 49000 | 3150 | BT4B 332928/HA1 |
| 744.538 | 1035.05 | 812.8 | 727.075 | 20500 | 58500 | 3600 | BT4B 332943/HA4 |
| 749.3 | 990.6 | 650 | 577 | 15100 | 45500 | 2850 | BT4B 332596/HA4 |
| 770 | 1040 | 800 | 650 | 18300 | 53000 | 3250 | BT4B 334099/HA4 |
| 777.875 | 1079.5 | 844.55 | 755.65 | 22000 | 63000 | 3800 | BT4B 332956/HA4 |
| 863.6 | 1130.3 | 717.55 | 644.525 | 19800 | 62000 | 3750 | BT4B 332571/HA4 |
| 872.769 | 1181.1 | 714.375 | 628.65 | 20900 | 57000 | 3550 | BT4B 332786/HA4 |
| 872.847 | 1181.1 | 714.375 | 628.65 | 20900 | 57000 | 3550 | BT4B 328956/HA4 |
| 879.475 | 1219.2 | 933.45 | 838.2 | 28100 | 81500 | 4750 | BT4B 328074/HA4 |
| 889 | 1219.2 | 880 | 784.225 | 27000 | 78000 | 4550 | BT4B 332602/HA4 |
| 896.903 | 1264 | 766 | 680 | 22900 | 64000 | 3800 | BT4B 334081/HA4 |
| 1004.634 | 1308.1 | 812.8 | 730.25 | 24600 | 76500 | 4400 | BT4B 332720/HA4 |
Packaging Details:
1.Tube packing.
2.Plastic bag +carton
3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders
