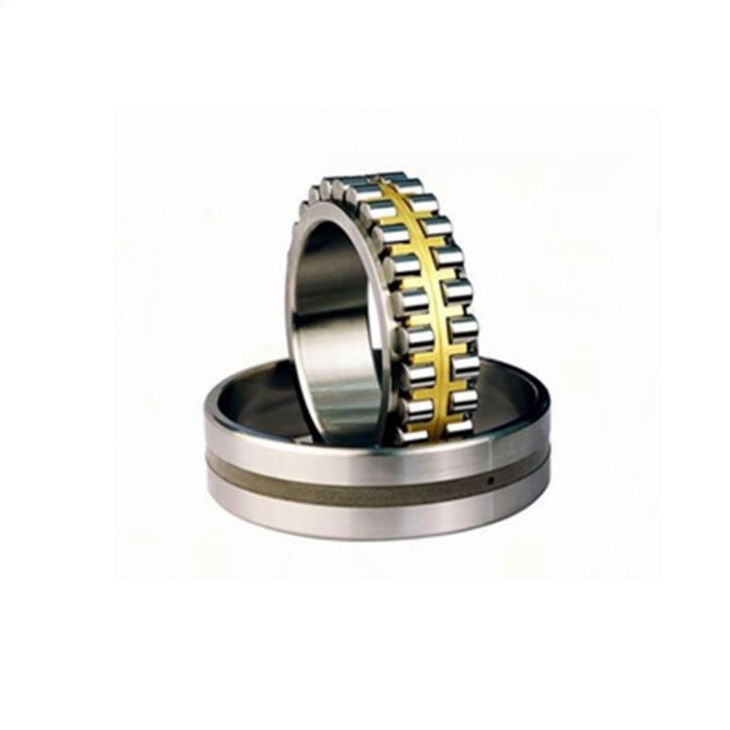

Cylindrical Roller Bearings, Double Row, Super-Precision

BEARING
Cylindrical Roller Bearings, Double Row, Super-Precision

Cylindrical Roller Bearings, Double Row, Super-Precision

SKU库存: 9999 分类:

Cylindrical Roller Bearings, Double Row, Super-precision

bc0f3bf0-0a66-44c3-8efa-6b8613254799

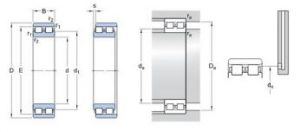

Principal dimensions Basic load ratings  Fatigue load limit Attainable speeds  Designation
dynamic static Grease lubrication Oil-air lubrication
d D B C C0 Pu
mm kN kN r/min
25 47 16 26 30 3.15 19000 22000 NN 3005 K/SP
25 47 16 26 30 3.15 19000 22000 NN 3005/SP
30 55 19 30.8 37.5 4 17000 19000 NN 3006 KTN/SP
30 55 19 30.8 37.5 4 17000 19000 NN 3006 TN/SP
35 62 20 39.1 50 5.4 14000 16000 NN 3007 K/SP
35 62 20 39.1 50 5.4 14000 16000 NN 3007/SP
40 68 21 42.9 56 6.4 13000 15000 NN 3008 TN/SP
40 68 21 42.9 56 6.4 13000 15000 NN 3008 KTN/SP
45 75 23 50.1 65.5 7.65 12000 14000 NN 3009 KTN/SP
45 75 23 50.1 65.5 7.65 12000 14000 NN 3009 TN/SP
50 80 23 52.8 73.5 8.5 11000 13000 NN 3010 KTN/SP
50 80 23 52.8 73.5 8.5 11000 13000 NN 3010 TN/SP
55 90 26 69.3 96.5 11.6 10000 12000 NN 3011 KTN/SP
55 90 26 69.3 96.5 11.6 10000 12000 NN 3011 TN/SP
60 95 26 73.7 106 12.7 9500 11000 NN 3012 TN/SP
60 95 26 73.7 106 12.7 9500 11000 NN 3012 KTN/SP
65 100 26 76.5 116 13.7 9000 10000 NN 3013 KTN/SP
65 100 26 76.5 116 13.7 9000 10000 NN 3013 TN/SP
70 110 30 96.8 150 17.3 8000 9000 NN 3014 TN/SP
70 110 30 96.8 150 17.3 8000 9000 NN 3014 KTN/SP
75 115 30 96.8 150 17.6 7500 8500 NN 3015 KTN/SP
75 115 30 96.8 150 17.6 7500 8500 NN 3015 TN/SP
80 125 34 119 186 22 7000 8000 NN 3016 KTN/SP
80 125 34 119 186 22 7000 8000 NN 3016 TN/SP
85 130 34 125 204 23.2 6700 7500 NN 3017 TN9/SP
85 130 34 125 204 23.2 6700 7500 NN 3017 KTN9/SP
90 140 37 138 216 26 6300 7000 NN 3018 TN9/SP
90 140 37 138 216 26 6300 7000 NN 3018 KTN9/SP
95 145 37 142 232 27.5 6000 6700 NN 3019 TN9/SP
95 145 37 142 232 27.5 6000 6700 NN 3019 KTN9/SP
100 150 37 151 250 29 5600 6300 NN 3020 TN9/SP
100 150 37 151 250 29 5600 6300 NN 3020 KTN9/SP
100 140 40 128 255 29 5600 6300 NNU 4920 BK/SPW33
100 140 40 128 255 29 5600 6300 NNU 4920 B/SPW33
105 160 41 190 305 36 5300 6000 NN 3021 TN9/SP
105 145 40 130 260 30 5300 6000 NNU 4921 B/SPW33
105 160 41 190 305 36 5300 6000 NN 3021 KTN9/SP
105 145 40 130 260 30 5300 6000 NNU 4921 BK/SPW33
110 170 45 220 360 41.5 5000 5600 NN 3022 TN9/SP
110 150 40 132 270 30 5300 6000 NNU 4922 BK/SPW33
110 170 45 220 360 41.5 5000 5600 NN 3022 KTN9/SP
110 150 40 132 270 30 5300 6000 NNU 4922 B/SPW33
120 165 45 176 340 37.5 4800 5300 NNU 4924 BK/SPW33
120 180 46 229 390 44 4800 5300 NN 3024 TN9/SP
120 165 45 176 340 37.5 4800 5300 NNU 4924 B/SPW33
120 180 46 229 390 44 4800 5300 NN 3024 KTN9/SP
130 200 52 292 500 55 4300 4800 NN 3026 TN9/SP
130 180 50 187 390 41.5 4300 4800 NNU 4926 BK/SPW33
130 180 50 187 390 41.5 4300 4800 NNU 4926 B/SPW33
130 200 52 292 500 55 4300 4800 NN 3026 KTN9/SP

Packaging Details:

1.Tube packing.

2.Plastic bag +carton

3.According to customer requirement
Delivery Detail: In general 5-10 days after we received your orders
